Product Description

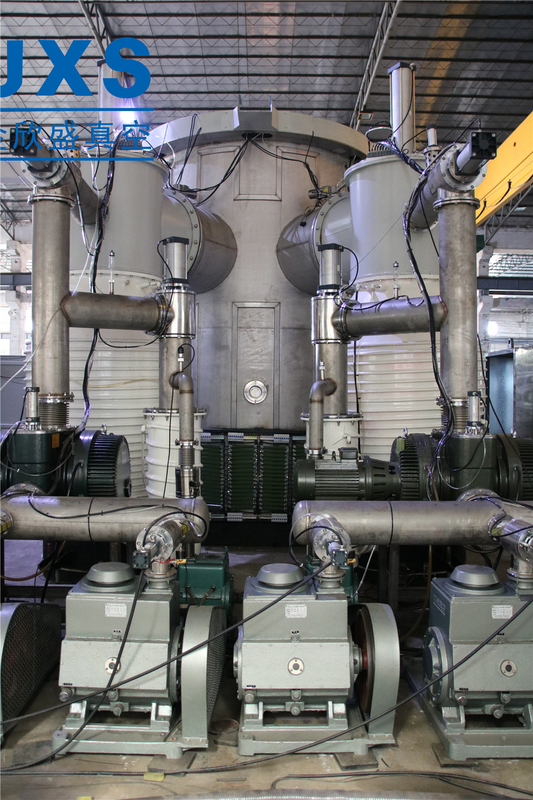

Main Parts: Vacuum Chamber, Vacuum Pumps, Electrical Cabinet.

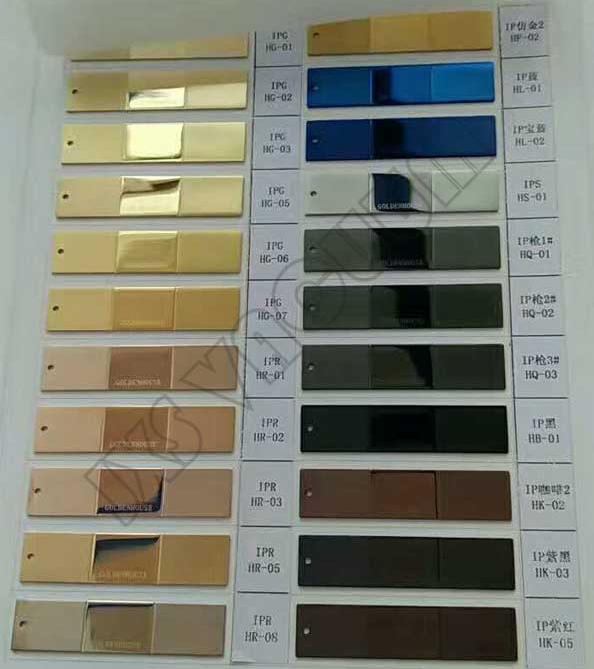

PVD Plating Colors: Gold, Rose Gold, Blue, Gray, Black, Rainbow, Green, Purple.
PVD Plating System Shining Points
1)Full Auto Touch Screen Control System For Convenient Operation
2)Safe For Human Body With Auto Cutting Off Water Electricity When Emergency
3)Green Process Without Waste Gas Water Material
4)High Energy Efficiency With Multi Arc High Depostion Speed
PVD Plating System Technical Data List
| Structure | Vertical Single Front Open Door |
| Heating System | 1 Set |
| Rotation Stand | 1 Set |
| Arc Target Size | Diameter100mm x Thickness40mm |
| Arc Power Supply | 200A |
| Bias Power Supply | 1 Set |
| PLC Brand | Mitsubishi |
| Control System | Full Automatic |
| Operation Way | Touch Screen |
| Pump Group | Rotary Vane Pump+Roots Pump+Diffusion Pump |
| Pump Brand | China |
PVD Plating System
PVD Products
PVD Products Advantages
1)Decorative Coating Colors For Higher Selling Value
2)Decoration Purpose
3)Strong Adhesion Film For Longer Using Life
Commercial Condition
1)Lead Time: 60 Working Days.
2)Payment Terms: TT, LC.
3)Trade Terms: EXW, FOB, CIF.
Jinxinsheng Vacuum Equipment Pre-Sales Service & After-Sales Service
1)Custom Made PVD Plating System Configuration
2)Whole PVD Plating Factory Building Turnkey Project
3)14 Days Free Installation & Training
4)1 Year Guarantee
5)Provide PVD Plating System Consumable & Spare Part
6)Life Time Technical Support
